DJI RS 3

Per piece

Product details

Overview

Ready When You Are

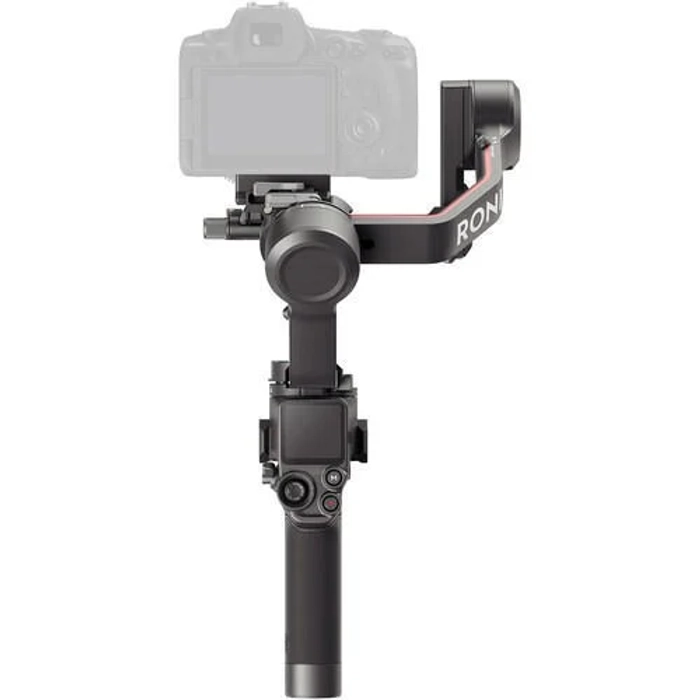

The DJI RS 3 has been redesigned to be even lighter and sleeker than the Ronin RSC 2 gimbal at only 2.8 lb with a payload of up to 6.6 lb. This tiny gimbal is tough enough to support and stabilize a Sony a7S III or Canon R5 with a 24-70mm zoom lens attached. With a larger full-color OLED display, a new fine-tuning knob, and greater stability, the RS 3 can become an essential part of your compact camera kit.

DJI RS 3 Specs

Grip Design

Single Handgrip

Gimbal

Load Capacity	6.6 lb / 3 kg
Number of Axes	3-Axis (Pitch, Roll, Yaw)
Rotation Range	Yaw (Pan): 360° Pitch (Tilt): -112 to 214° Roll: -95 to 240°
Follow Speed	Pan: 360°/s Tilt: 360°/s Roll: 360°/s

Compatibility

Camera Control	On Compatible Models
Camera Mounting Screw	1 x 1/4"-20 Male

Connectivity

Inputs/Outputs	3 x USB Type-C (Control) Output 1 x USB Type-C (Power)
Wireless Frequency	2.4 GHz (2.4 - 2.484)
Wireless Protocol	Bluetooth 5.0

Battery

Battery Type	1 x Built-In
Battery Capacity	3000 mAh / 21 Wh
Battery Runtime	12 Hours
Battery Charging Time	2.5 Hours
Battery Chemistry	Lithium-Ion Polymer (LiPo)
Voltage	7.2 VDC

Environmental

Operating Temperature

-4 to 113°F / -20 to 45°C

General

Display Type	Fixed Touchscreen OLED
Mounting	1 x 1/4"-20 Female 1 x Cold Shoe Mount
Dimensions	16.1 x 10.2 x 7.7" / 410 x 260 x 195 mm
Weight	2.2 lb / 990 g

In the Box

DJI RS 3 Gimbal Stabilizer
DJI BG21 Grip for RS 3 Gimbal
USB Type-C Charging Cable (15.7")
Lens Support
Extended Grip/Tripod
Quick Release Plate (Arca-Type/Manfrotto)
USB Type-C Multi-Control Cable (11.8")
Screw Kit
