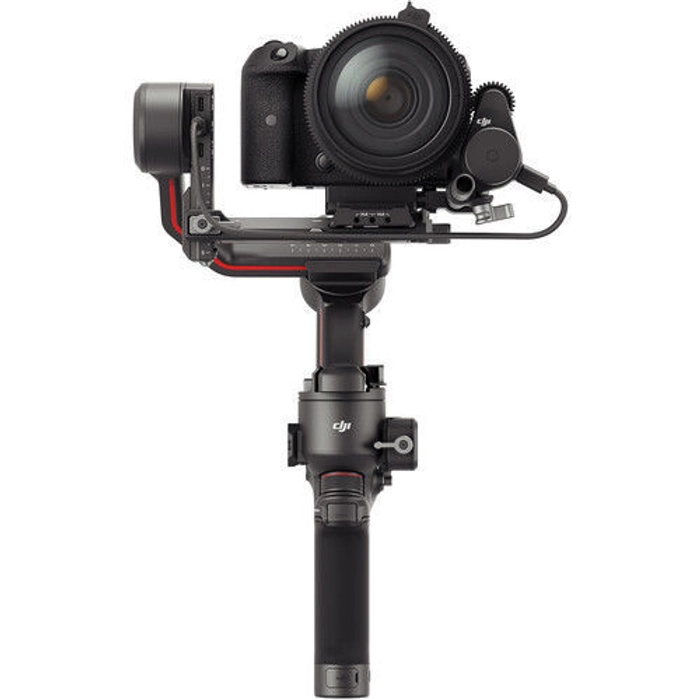

The DJI RS 3 Combo includes the redesigned RS 3 gimbal stabilizer, an even lighter and sleeker gimbal than the Ronin RSC 2 at only 2.8 lb and with a payload of up to 6.6 lb. This tiny gimbal is tough enough to support and stabilize a Sony a7S III or Canon R5 with a 24-70mm zoom lens attached. With a larger full-color OLED display, a new fine-tuning knob, and greater stability, the RS 3 can become an essential part of your compact camera kit. The Combo kit includes additional essentials such as an updated Focus motor, a motor rod mount kit with gear strip, a briefcase handle, two multi-camera control cables, and a lens-fastening strap.
DJI RS 3Â Specs
| Grip Design |
Single Handgrip |
Â
Gimbal
| Load Capacity |
6.6Â lb / 3Â kg |
| Number of Axes |
3-Axis (Pitch, Roll, Yaw) |
| Rotation Range |
Yaw (Pan): 360°
Pitch (Tilt): -112 to 214°
Roll: -95 to 240° |
| Follow Speed |
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s |
Â
Compatibility
| Camera Control |
On Compatible Models |
| Camera Mounting Screw |
1 x 1/4"-20 Male |
Â
Connectivity
| Inputs/Outputs |
3 x USB Type-C (Control) Output
1 x USB Type-C (Power) |
| Wireless Frequency |
2.4 GHz (2.4 - 2.484) |
| Wireless Protocol |
Bluetooth 5.0 |
Â
Battery
| Battery Type |
1 x Built-In |
| Battery Capacity |
3000 mAh / 21 Wh |
| Battery Runtime |
12 Hours |
| Battery Charging Time |
2.5 Hours |
| Battery Chemistry |
Lithium-Ion Polymer (LiPo) |
| Voltage |
7.2 VDC
|
Â
Environmental
| Operating Temperature |
-4 to 113°F / -20 to 45°C |
Â
General
| Display Type |
Fixed Touchscreen OLED |
| Mounting |
1 x 1/4"-20 Female
1 x Cold Shoe Mount |
| Dimensions |
16.1 x 10.2 x 7.7" / 410 x 260 x 195Â mm |
| Weight |
2.2Â lb / 990Â g |

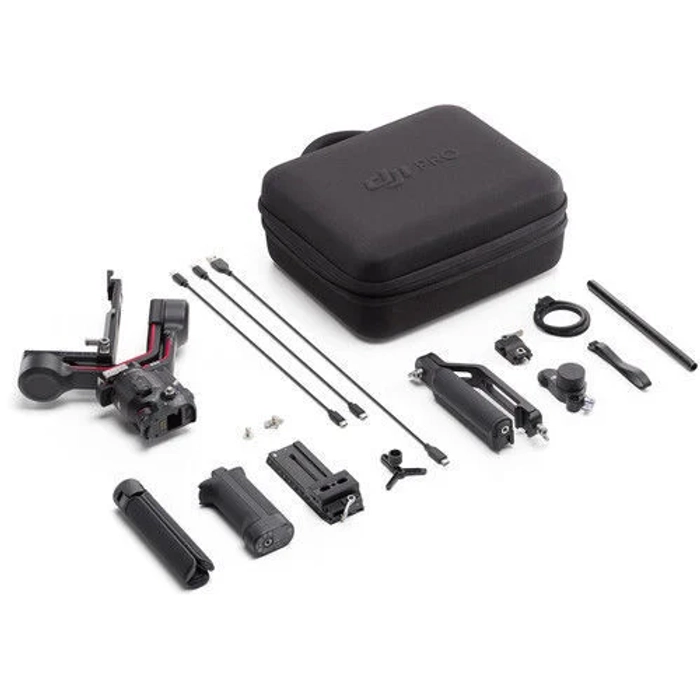

In the Box
- DJI RS 3 Gimbal Stabilizer Combo
- DJI BG21 Grip for RS 3 Gimbal
- DJI Briefcase Handle for RS Series
- DJI RS Focus Motor (2022)
- Focus Motor Rod Mount Kit
- Focus Gear Strip
- USB Type-C Charging Cable (15.7")
- Lens Support
- Extended Grip/Tripod
- Quick Release Plate (Arca-Type/Manfrotto)
- 2 x USB Type-C Multi-Control Cable (11.8")
- Lens Fastening Strap
- Carry Case
- Screw Kit
