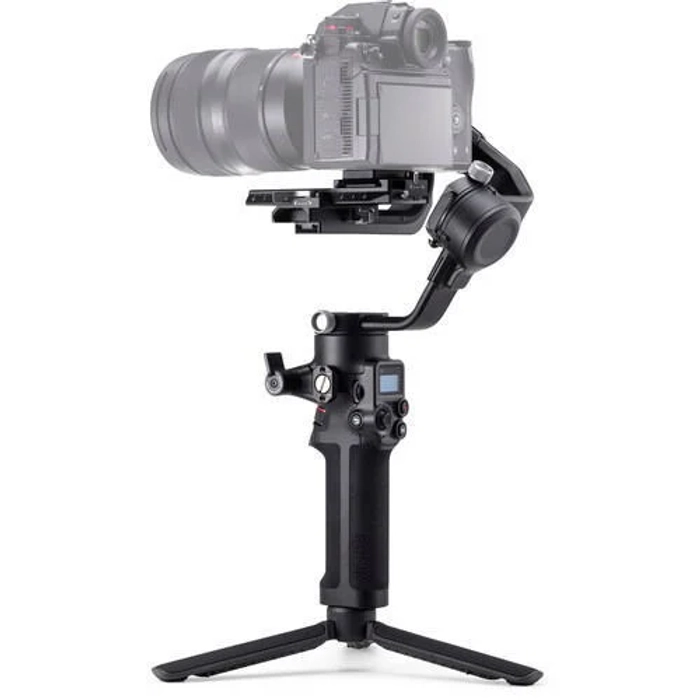

DJI RSC 2
Per piece
The DJI RSC 2 is designed for mirrorless and DSLR cameras and supports up to 6.6 lb camera and accessories loads. Please see the most current camera and lens compatibility list on the DJI website.
The motors of the RSC 2 are 50% more powerful than those of the Ronin-SC, which is the predecessor of this redesigned gimbal. A key feature of the RSC 2 is a foldable design that allows switching to underslung mode.
| Number of Axes | 3-Axis (Pitch, Roll, Yaw) |
| Rotation Range | Yaw (Pan): 360° Pitch (Tilt): -240 to 95° Roll: -112 to 214° |
| Load Capacity | 6.6Â lb / 3Â kg |
| Ports | 3 x USB Type-C |
| Wireless Frequency | 2.4 GHz (2.4 - 2.483) |
| Wireless Protocol | Bluetooth 5.0 |
| Battery Type | 2 x 18650 |
| Capacity (mAh) | 3400 mAh |
| Capacity (Wh) | 24.48 Wh |
| Battery Runtime | 14 Hours |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Materials | Aluminum |
| Mounting | 1 x 1/4"-20 Female 1 x Cold Shoe Mount 2 x NATO Rail 4 x M4 Female |
| Dimensions | 15.7 x 7.3 x 6.9" / 40 x 18.5 x 17.5Â cm 10.2 x 8.3 x 3" / 26 x 21 x 7.5Â cm (Folded) |
| Weight | 2.681Â lb / 1.216Â kg (without Battery) 2.906Â lb / 1.318Â kg (with Camera Plate) |
