Home /   Categories /   Tripod  /   Vanguard Alta CA 234 AGH Tripod with Pistol Grip Head

Vanguard Alta CA 234 AGH Tripod with Pistol Grip Head

Per piece

Product details


  1. Load Capacity: 11 lb
  2. Max Height: 61.6"
  3. Min Height: 8.5"
  4. Folded Height: 22.6"
  5. Leg Sections: 4
  6. GH-30 Pistol Grip Ball Head
  7. 360° Panning
  8. Quick-Release Plate Included


The Vanguard Alta CA 234AGH Aluminum Tripod combines the 4-section aluminum legs with the GH-30 pistol grip head. The tripod can hold 11 lb of gear, and extends to 61.6". Its legs are secured by flip locks, and can be independently adjusted to 20°, 40°, 60°, and 80° angles. Each leg has an angled rubber foot for keeping the tripod from slipping on slippery surfaces.


The rapid center column has a built-in short column that allows you to shoot from just 8.5" above the ground for macro and low-angle photography. A ballast hook on the bottom of the center column provides a place to add weight for added stability.

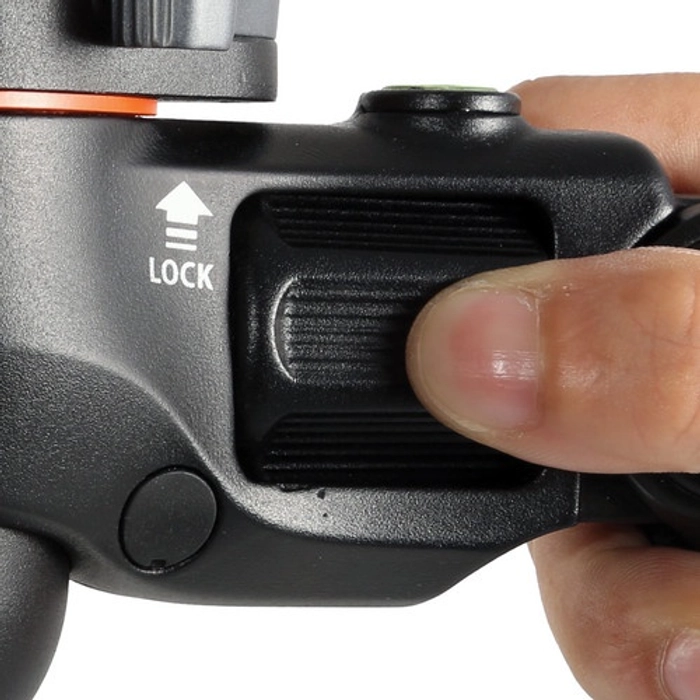

The GH-30 pistol grip ball head combines the versatility of a 360° panning ball head with the unique feature of one-handed operation. To change your camera position, you simply turn the lock counter-clockwise to release the lock on the ball, reposition your camera, and turn the lock clockwise to lock the ball in position. This enables extremely fast setups while allowing you to keep one hand on the camera and one hand on the pistol grip. An included QS-36 quick-release plate attaches to your camera via a 1/4"-20 mounting screw.



  • Load Capacity

    5 kg

  • Maximum Height

    61.6" (156.5 cm)

  • Maximum Height w/o Column Extended

    51.2" (130 cm)

  • Minimum Height

    8.5" (21.5 cm)

  • Folded Length

    22.6" (57.5 cm)

  • Head Type

    GH-30 pistol grip ball head

  • Quick Release

    Yes, QS-36

  • Bubble Level


  • Material

    Aluminum alloy

  • Head Attachment Fitting

    3/8"-16 and 1/4"-20

  • Leg Stages/Sections


  • Leg Lock Type


  • Independent Leg Spread

    Yes, 20°, 40°, 60°, and 80°

  • Spiked/Retractable Feet


  • Center Brace


  • Center Column Type

    Rapid, faceted

  • Center Column Sections


  • Ballast Hook


  • Box Dimensions (LxWxH)

    23 x 5.5 x 3.75"

  • Package Weight

    2.3 kg
