Vanguard Espod CX 203AGH Aluminium Tripod With Pistol Grip Head

Per piece

Product details


  1. Load Capacity: 7.7 lb
  2. Maximum Height: 61.0"
  3. Minimum Height: 47.9"
  4. Folded Length: 23.3"
  5. Leg Sections: 3, Weight: 3.8 lb
  6. Aluminum-Alloy Legs, Flip Locks
  7. Rubber Feet
  8. Pistol Grip Ball Head
  9. Quick Release Plate, 1/4"-20 Mount
  10. Independent 360° Pan, 90° Tilt

This ESPOD CX 203AGH Aluminum-Alloy Tripod Kit from Vanguard supports up to 7.7 lb, measures 23.3" when folded, and includes a GH-20 Pistol Grip Ball Head with QS-29 Quick Release Plate. Each of its 3-section legs features an independent spread as well as flip locks for fast deployment. Together, the three legs can be can be positioned for a minimum height of 47.9" to a maximum height of 61.0" with the center column fully raised.

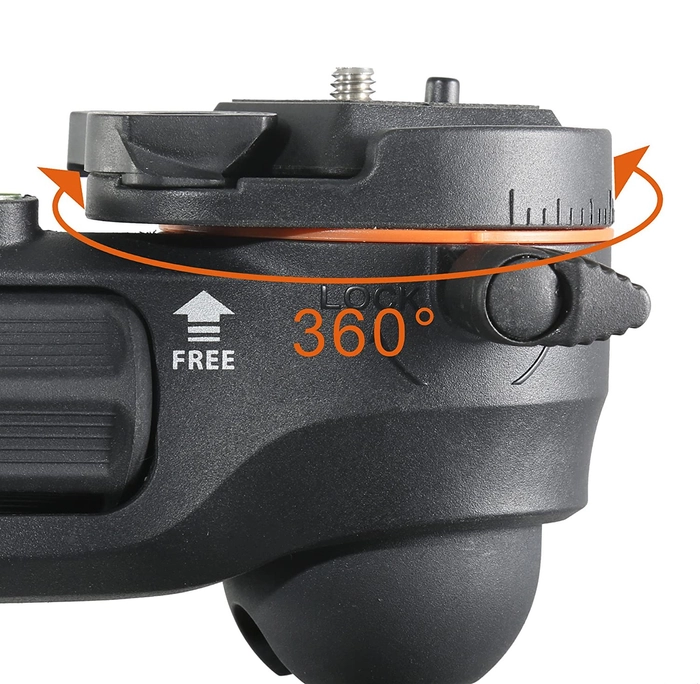

Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the QS-29 Quick Release Plate, which is secured to the tripod head using a quick release cam lock. By releasing the GH-20 Pistol Grip Ball Head's rotating thumb lock, the tripod head's integrated ball-and-socket joint can be quickly swiveled 360°, angled, fully tilted, or returned to its upright position. Additionally, the cam lock assembly, along with the quick release plate, can be rotated 360° independently of the head.


General Use and Handling:

  • Supports up to 7.7 lb
  • Push-and-pull rapid center column for rapid positioning
  • Can be set to a minimum height of 47.9" to a maximum height of 61.0" with the center column fully raised
  • Aluminum-alloy legs each feature 3 sections, flip locks for fast deployment, and can be independently spread
  • Rubber feet enhance stability on a wide variety of surfaces
  • Weighs 3.8 lb, measures 23.3" when folded



  • Ball head with ergonomic pistol grip and integrated, rotating thumb lock provides 360° of swivel control and can be tilted down to a 90° angle

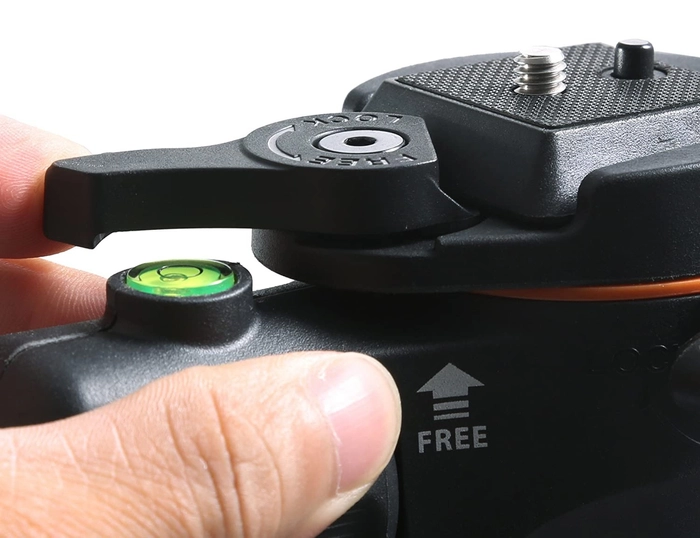

  • Quick release cam lock on top of head is compatible with included QS-29 Quick Release Plate
  • Quick release plate with 1/4"-20 mount with rubberized, anti-slip surface and anti-twist index pin
  • Friction lock for cam lock assembly allows quick release plate to independently rotate 360°


  • Head Type

    Pistol Grip Head

  • Camera Mounting Screw

    1/4"-20 Male

  • Load Capacity

    7.7 lb / 3.5 kg

  • Maximum Working Height

    61" / 154.9 cm

  • Minimum Working Height

    47.9" / 121.7 cm

  • Folded Length

    23.3" / 59.2 cm

  • Materials

    Aluminum Alloy

  • Weight

    1.7 kg

  • Leg Lock Type

    Flip Lock

  • Independent Leg Spread


  • Leg Sections


  • Center Column Sections


  • Center Column Extension Type


  • Lateral / 90-Degree Center Column


  • Package Weight

    1.58 kg

  • Box Dimensions (LxWxH)

    23.8 x 5.5 x 4.1"



    • Vanguard Espod Cx 203agh Aluminum-alloy Tripod Kit With Gh-20 Pistol Grip Ball Head
    • Vanguard Gh-20 Pistol Grip Ball Head
    • Vanguard Qs-29 Quick Release Plate
    • Limited 2-year Warranty
    • Extendable To 5-year Warranty With Product Registration
